SAS macro %BICSurvTimeDependent
Computing the BIC (Bayesian Information Criterion) in Survival Models with time-dependent covariates
Model selection for Cox proportional hazards models is made easy in R through the use of Chris Volinsky's bic.surv function. However, this function does not accommodate time dependent covariates. When one or more of the independent variables varies with time, however, there is to my knowledge no R or SAS function or macro available, hence the need for %BICSurvTimeDependent.

[ %BICSurvTimeDependent is a SAS macro to compute Bayesian Information Criterion (BIC) in Survival Models when one or more of the independent variables is (are) time-dependent. ]


Unlike the BIC functions available for R which use Occam's Razor to pare down the total number of models reported, %BICSurvTimeDependent does not have this capability. Thus, every possible model (i.e., 2p models for p covariates) derived from the list of independent variables (see indep in argument's list below) is fit, which may make %BICSurvTimeDependent long — or even impossible — to run when the number of independent variables is large.

%BICSurvTimeDependentReport is a SAS macro included in the downloadable file that reports %BICSurvTimeDependent output in a reader-friendly fashion. See example below for an illustration of combined use of these two macros.

Menu




Top
Syntax

%BICSurvTimeDependent(outModels=, outParms=, data=, time0=, time1=, cens=, indep=, force=, ties=exact, level=0.95);


Top
%BICSurvTimeDependent arguments list

Argument Value
outModels Name of output dataset where the list of compared models will be saved.
outParms Name of output dataset where each model's parameter estimates will be saved.
data Name of the survival data set to be analyzed.
time0 Name of the left-end time interval variable.
time1 Name of the right-end time interval variable.
cens Name of the censoring variable (taking values 1=event, 0=censored value).
indep List of independent variables.
String variables and formatted variables (variables with value labels) are analyzed as class variables.
force An optional list of independent variables to be forced in the model (models without any of the variables listed will be discarded).
ties Tie-handling method: one of BRESLOW, DISCRETE, EFRON, or EXACT. Default is EXACT.
level Level of Hazard Ratios Credible Intervals reported.


Top
Example

Consider the problem where the survival is modeled through age at diagnosis, gender and three time-dependent variables (x, y and z). The data set mySurvData was prepared beforehand such that the values for x, y and z are constant over the time intervals delimited by time points time0 and time1. Censoring variable Deceased was also redefined to indicate patients status at the end of each time interval. BIC model selection is run through the SAS macro call:

%BICSurvTimeDependent(outModels=bicModels, outParms=bicParms, data=mySurvData, time0=time0, time1=time1, cens=Deceased, indep=gender AgeAtDiagnosis x y z);


where the arguments bicModels and bicParms are output data sets, which can be printed, used or modified if necessary:

proc print data=bicModels; run;

                                                                   minus2log            n
     Obs    Model                          Converged      BIC          L        p    Events

       1    AgeAtDiagnosis,x,y,z,gender        1        548.299     526.327     5      81
       2    AgeAtDiagnosis,x,y,z               1        549.100     531.522     4      81
       3    AgeAtDiagnosis,x,y,gender          1        566.694     549.116     4      81
       4    AgeAtDiagnosis,x,y                 1        568.853     555.670     3      81
       5    AgeAtDiagnosis,x,z,gender          1        611.691     594.113     4      81
       6    AgeAtDiagnosis,x,z                 1        611.017     597.834     3      81
       7    AgeAtDiagnosis,x,gender            1        695.492     682.309     3      81
       8    AgeAtDiagnosis,x                   1        695.365     686.576     2      81
       9    AgeAtDiagnosis,y,z,gender          1        544.323     526.745     4      81
      10    AgeAtDiagnosis,y,z                 1        545.147     531.964     3      81
      11    AgeAtDiagnosis,y,gender            1        562.592     549.409     3      81
      12    AgeAtDiagnosis,y                   1        564.691     555.902     2      81
      13    AgeAtDiagnosis,z,gender            1        607.692     594.509     3      81
      14    AgeAtDiagnosis,z                   1        606.928     598.139     2      81
      15    AgeAtDiagnosis,gender              1        697.108     688.319     2      81
      16    AgeAtDiagnosis                     1        697.058     692.664     1      81
      17    x,y,z,gender                       1        559.678     542.100     4      81
      18    x,y,z                              1        563.481     550.298     3      81
      19    x,y,gender                         1        578.293     565.110     3      81
      20    x,y                                1        583.515     574.726     2      81
      21    x,z,gender                         1        646.419     633.236     3      81
      22    x,z                                1        649.349     640.560     2      81
      23    x,gender                           1        746.003     737.214     2      81
      24    x                                  1        749.835     745.441     1      81
      25    y,z,gender                         1        556.631     543.448     3      81
      26    y,z                                1        561.146     552.357     2      81
      27    y,gender                           1        573.899     565.110     2      81
      28    y                                  1        579.218     574.824     1      81
      29    z,gender                           1        642.537     633.748     2      81
      30    z                                  1        645.766     641.372     1      81
      31    gender                             1        747.543     743.149     1      81
      32    NULL                               1        750.246     750.246     0      81

Note that while running, %BICSurvTimeDependent prints proc phreg output (for each of the 32 models) to Sas output window: however, every relevant information for the computation of BIC values is stored in the output data sets, and the output window can thus be ignored.

The sas macro %BICSurvTimeDependentReport (included in the downloadable file below) conveniently produces a comprehensive HTML version of the BIC output.

ods listing close;
ods html file="c:\users\pbelisle\My Documents\Home\MyProject\log\BICSurvTimeDependent.html" style=mystyle;
title 'BIC (Bayesian Information Criterion) results';

%BICSurvTimeDependentReport(parms=bicParms, models=bicModels);

ods html close;
title;
ods listing;

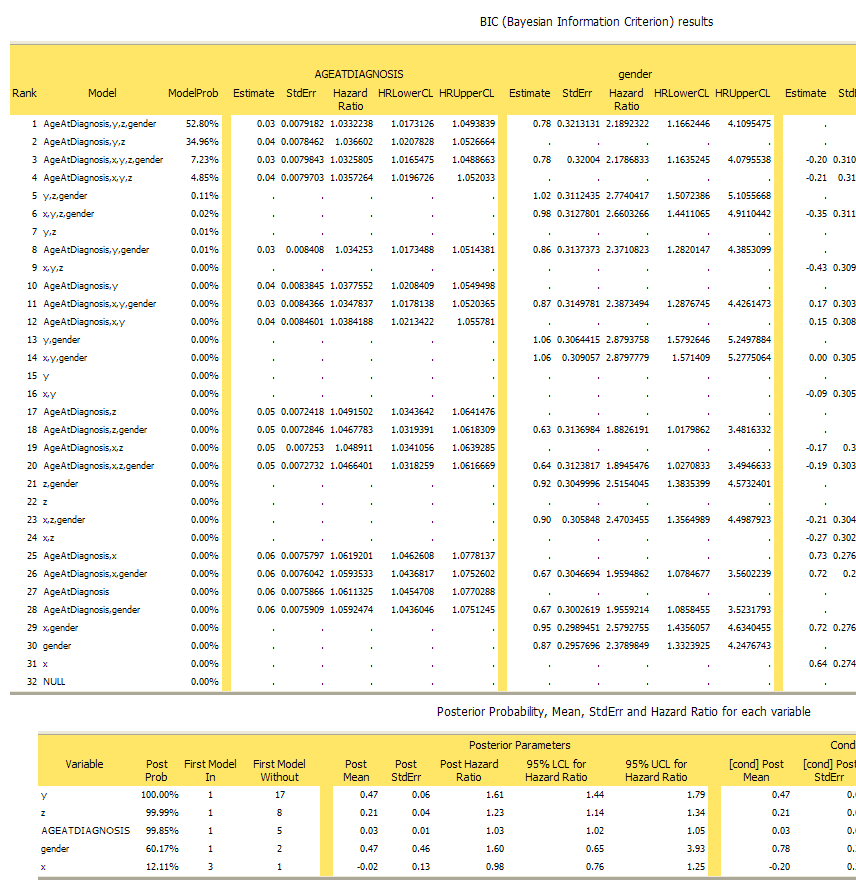

which should look like this:

Click on above image to view actual Html output file.


Note that only 8 (of the 32 possible models) were included in the report, since by default only the models with probability ≥ 1% are printed; to include all models in the report, call %BICSurvTimeDependentReport with the inclusive option where= (left empty), as in:

%BICSurvTimeDependentReport(parms=bicParms, models=bicModels, where=);


Top
Interaction terms

Interaction terms of order 2 are allowed in the model. Class variables, however, are not allowed in interaction terms in the actual version.

%BICSurvTimeDependent(outModels=bicModels, outParms=bicParms, data=mySurvData, time0=time0, time1=time1, cens=Deceased, indep=gender AgeAtDiagnosis x y z AgeAtDiagnosis*x);




Top
Download

%BICSurvTimeDependent is a free SAS macro. Download version 4.0.5 now.
